Chamber Opening: 12″ x 10″ (approx. 300 x 250 mm)
Tunnel Length: 3 ft (~3–5 sec dwell time)
Conveyor Speed: 0–12 m/min (adjustable)
Load Capacity: 5 kg
Power Rating: 3.6 kW (Single Phase / 220V)
Dimensions (L x W x H): 1200 x 500 x 600 mm
Compatible Films: POF, PVC, PP, PE (0.01–0.04 mm)
Body Material: Powder-Coated MS / Stainless Steel
Warranty: 1 Year
Best For: Cosmetics, pharma, small retail packs, stationery, Boxes, Bottles

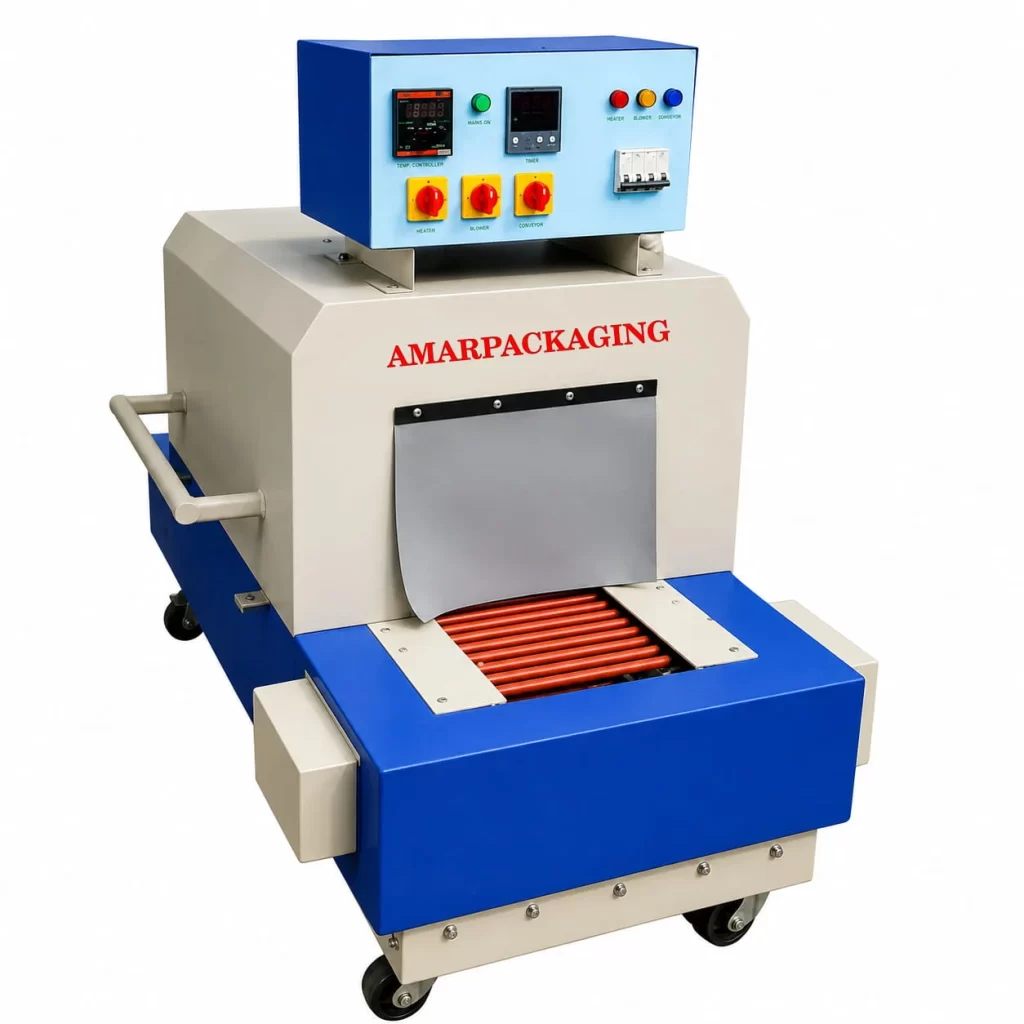

The 12×10 Shrink Tunnel Machine is an entry-level heat shrink packaging machine built for businesses that need a professional, factory-finish shrink wrap without investing in a full-scale industrial line. It uses far-infrared quartz heaters positioned around a 12-inch x 10-inch chamber to shrink POF, PVC, PP and PE films evenly around your product as it moves through on a variable-speed conveyor.
Because both the chamber temperature and the conveyor speed are independently adjustable, the same machine can handle a range of film thicknesses (typically 0.01–0.04 mm) and product shapes – from cosmetic jars and pharmaceutical bottles to small cartons and single retail items – without switching equipment.
If you’re packaging anything larger than roughly 10 inches wide, this isn’t the right size for you – jump to our Industry Level Models instead. Not sure which one fits? Use the size guide further down this page.
Chamber size is the single biggest decision you’ll make when buying a shrink tunnel — get it wrong and you’ll either damage your product with a tunnel that’s too tight, or waste energy heating empty space in a tunnel that’s too big.
As a rule of thumb, your product should be at least 2 inches narrower and 2 inches shorter than the tunnel opening. That extra clearance lets hot air circulate evenly around the product — without it, you risk uneven shrinkage or the product jamming inside the chamber.
Packaging something wider than ~10 inches, or running 12–24 packs of bottles/cans? You’ll want our Standard or Heavy Duty model — see the full size comparison below.
360° Quartz Heating Far-infrared heating elements on the top, bottom and sides of the chamber shrink film evenly from every angle — no cold spots, no patchy finish.
Independently Adjustable Heat & Speed Dial in the exact temperature and conveyor speed for your film type and product — the same machine adapts to POF, PVC, PP and PE films without any mechanical changeover.
Cool-Touch Exterior The outer body stays cool even during continuous operation, so operators can work safely around the machine all shift long.
Compact Footprint Built to fit on a standard packing line or even a small workshop floor — you don’t need a dedicated production hall to run this machine.
Low Maintenance, Long Service Life Simple mechanical design with few moving parts means less downtime and lower servicing costs over the life of the machine.
Consistent, Retail-Ready Finish A tight, glossy, tamper-evident shrink wrap that protects your product and makes it look shelf-ready straight off the line.
Most buyers don’t start out knowing their exact tunnel size — they start with a product. Use this guide to match your product to the right chamber class before you buy.
| Class | Chamber Opening | Best Used For |
|---|---|---|
| Small / Entry-Level (this model) | 12″W x 10″H approx. (300 x 250 mm) | Cosmetic jars, pharma bottles, small boxes, single retail items |
| Medium / Industry Standard | 18″W x 8 – 10″H approx. (450 x 250 mm) | Retail multi-packs, books, tray wraps, bakery items, medium consumer goods |
| Large / Heavy-Duty Industrial | 22–24″W x 12–16″H approx. (550–600 x 300–400 mm) | Beverage multi-packs (12/24-packs), large cartons, industrial bundling |
