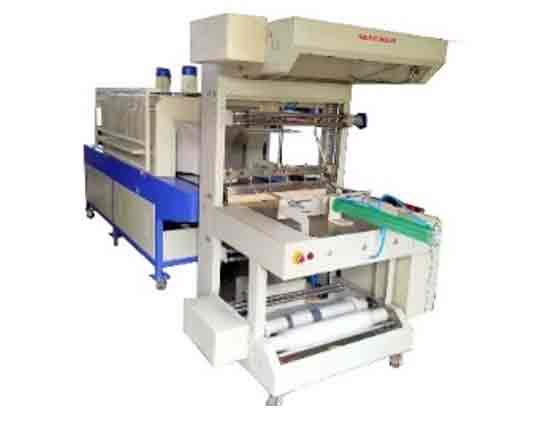

The Semi-Automatic Web Sealer Machine for bottles by AmarPack Machines Pvt Ltd is an industrial-grade unitization platform designed for rigid container multi-packing across PET, HDPE, glass, and aluminum formats. Engineered for medium-throughput production lines (8–12 packs/min), the system utilizes dual-stage pneumatic actuation and closed-loop thermal contraction to deliver high-tensile, bullseye-sealed bundle matrix formats (e.g., 2×3, 3×4, and 4×6).
Pneumatic Impulse Sealing Architecture: Employs double-acting pneumatic cylinders with micro-adjustable pressure regulators delivering consistent, high-integrity cross-seals. Non-stick, Teflon-coated impulse heating elements prevent polymer residue accumulation and maintain uniform film cut-off across LDPE, LLDPE, and POF films (30–100 microns).
Dynamic Web Tensioning & Film Feed: Features an automated unwinding system equipped with a dancer arm assembly and motorized mandrels to maintain constant web tension, eliminating film gauge distortion, web drift, and misregistration during acceleration cycles.
Structural Rigidity & Frame Integrity: Fabricated from heavy-gauge, CNC-machined structural mild steel with anti-corrosive powder cladding. The vibration-damped chassis resists deflection under continuous multi-shift operations.
Thermal Contraction & Energy Optimization: Features an integrated forced-air recirculation shrink tunnel controlled via digital PID temperature loops. Precision air baffle dampers ensure omnidirectional thermal distribution for uniform film shrinkage and tight side bullseyes while minimizing kWh thermal loss.
Line Integration & Modular Feed Flexibility: Designed for inline integration via motorized roller conveyors or 90° pneumatic cross-pushers, supporting seamless upstream synchronization with bottle filling, capping, and labeling systems. Quick-locking collars enable tooling-free SKU changeovers in under 10 minutes.
Heavy-Duty Industrial Construction: Fabricated with CNC-machined, heavy-gauge mild steel frame members coated with anti-corrosive industrial powder cladding to withstand mechanical stress, vibration, and continuous multi-shift operations.
Pneumatic Sealing Arm System: Features double-acting pneumatic cylinders paired with impulse/constantly heated Teflon-coated sealing jaws, delivering uniform cross-seal clamping force and clean film cutoff without residue build-up.
Smooth Film Unwinding with Dancing Roll: Equipped with dynamic tensioning dancing rolls and motorized unwinding mandrels to ensure steady film feed, preventing web tear, misregistration, and film gauge distortion during high-speed cycle initiation.
Multiple Feeding Options: Configurable with manual pusher tables, inline powered belt feeds, or 90° cross-feed pneumatic pushers to adapt to upstream filling, capping, or labeling conveyor heights and orientations.
Easy Film Roll Mounting: Dual quick-change film roll shafts with quick-locking core collars reduce roll changeover downtime to under 3 minutes, maximizing overall equipment effectiveness (OEE).
Compatible with Conveyorized Shrink Tunnels: Pairs with dual-zone forced-air recirculation shrink tunnels equipped with digital PID temperature controllers, variable-speed mesh/rod conveyors, and adjustable air velocity dampers for uniform thermal contraction.
| Feature | Specification | Benefit |
| Machine Type | Semi-Automatic Pneumatic Web Sealer | Balances high-strength impulse sealing with manual/semi-automated feeding flexibility. |
| Suitable Products | PET, HDPE, Glass, and Aluminum Bottles (250 ml to 2.5 L) | Broad material versatility across beverage, pharma, and chemical packaging lines. |
| Construction | Heavy-Gauge Mild Steel with Industrial Powder Coating | High structural rigidity prevents frame deflection and extends machine operational lifespan. |
| Sealing Arm Operation | Pneumatic (Air Consumption: ~4–6 Bar / 60–90 PSI) | Maintains constant, repeatable sealing bar pressure for leak-proof web seals. |
| Film Unwinding System | Motorized Unwind with Tensioning Dancing Roll | Eliminates film drag, prevents stretching, and ensures consistent bundle tightness. |
| Feeding Options | Manual Pusher / Inline Motorized Belt / 90° Cross Feed | Adaptable layout integration for varied plant space constraints and conveyor heights. |
| Compatible Shrink Films | LDPE, LLDPE, and POF (Gauge: 30 to 100 Microns) | Allows optimization between film cost, burst strength, and thermal shrink percentage. |
Heavy-Duty Industrial Construction: Structural integrity built to support continuous 24/7 production environments without frame distortion or alignment loss.
Pneumatic Sealing Arm System: Provides micro-adjustable pressure regulators and dwell timers for fine-tuning seal integrity across varying film thicknesses.
Smooth Film Unwinding with Dancing Roll: Maintains constant web tension to eliminate film slippage, ensuring precise sealing alignment on every cycle.
Multiple Feeding Options: Accommodates loose bottle collation or pre-tray matrix groupings without requiring mechanical tool changes.
Easy Film Roll Mounting: Top and bottom film roll cradles feature low-friction bearings for easy operator loading and alignment.
Compatible with Conveyorized Shrink Tunnels: Ensures complete thermal distribution across the top, sides, and bottom bullseyes of the wrapped pack for zero-wrinkle output.
| Decision Factor | Semi-Automatic Web Sealer | Automatic Web Sealer |
| Machine Type | Semi-Automatic Pneumatic Web Sealer | Fully Automatic High-Speed Web Sealer |
| Production Speed | 8 – 12 packs per minute (operator dependent) | 15 – 25+ packs per minute (continuous feed) |
| Bottle Arrangement | Manual bottle collation or simple mechanical indexing | Automatic multi-lane bottle lane divider with pneumatic collator |
| Sealing Arm Operation | Single-stage pneumatic cylinder actuation | Dual-stage pneumatic or high-speed servo-driven sealing arm |
| Sealing Quality | Precise impulse/constant heat sealing with pneumatic pressure | High-precision thermal sealing with automated dwell control |
| Manpower Requirement | 1 Operator for product feeding and matrix collation | 1 Line Overseer for reel changes and monitoring |
| Initial Investment | Lower CAPEX; ideal for medium batch sizes and multi-SKU lines | Higher CAPEX; optimized for continuous high-speed single-SKU runs |
| Suitable Production Scale | Small to medium-scale bottling operations (up to 12,000 bph) | High-volume industrial bottling lines (15,000+ bph) |
Need help choosing the right model? Our engineering team provides free consultation to help you select the perfect shrink wrapping machine based on your product size, production capacity, and automation needs.
Optimizes Packaging Throughput: Increases linear output speed while standardizing bundle tightness compared to manual wrapping processes.
High Structural Load Security: Creates high-tensile LDPE bullseye sleeves that hold heavy bottle matrices (e.g., 24-pack water bottles) securely without outer cardboard casing.
Cost-Effective Thermal Efficiency: Equipped with isolated thermal chambers and recirculation blowers to minimize heat loss, reducing total kWh consumption per batch.
Tool-less Bottle Size Adaptation: Hand-wheel adjusters for side guides and sealing height allow rapid changeover between 500ml, 1L, and 2L bottle formats in under 10 minutes.
Wrinkle-Free Aesthetic Finish: Precise thermal zone control in the tunnel ensures uniform film shrinkage, clear brand visibility through film, and clean side bullseyes.
Industrial Component Standardization: Built using standardized pneumatic cylinders, PID controllers, and heating elements for low-cost, off-the-shelf spare parts availability.
Take your packaging efficiency even further with these machines:
Take your packaging efficiency even further with these machines:
Automatic Shrink Wrapping Machine with Collator – Multi-lane automatic indexing and high-speed sleeve wrapping for integrated production lines.
Shrink Wrapping Machine – is an efficient packaging solution designed to wrap products with shrink film for a secure and professional finish. It is suitable for packaging bottles, cartons, boxes, FMCG, food, pharmaceutical and industrial products.
Vacuum Packaging Machine – Industrial chamber vacuum sealers designed for moisture removal and shelf-life extension.
AmarPack operates under ISO 9001:2015 quality management systems and CE-compliant electrical/mechanical safety standards. Every web sealer and shrink tunnel undergoes rigorous static load testing, pneumatic pressure drop checks, and continuous 72-hour thermal cycle testing before dispatch.
AmarPack maintains a responsive field service engineering team providing round-the-clock technical assistance, preventive maintenance schedules, and rapid dispatch of OEM spare parts across all major industrial clusters.
With over two decades of specialization in thermal packaging machinery and line automation, AmarPack has executed 1000+ successful installations globally. Our machinery is recognized for high MTBF (Mean Time Between Failures), low maintenance metrics, and consistent operational uptime.
Trusted by 120+ industrial clients with a 4.8/5 satisfaction rating.
The Semi-Automatic Web Sealer for Bottles provides a robust, industrial-grade packaging platform for medium-volume bottling lines. By combining pneumatic sealing dynamics with controlled recirculating thermal heat, the machine ensures consistent seal tensile strength, tight wrap integrity, and clean side-aperture (bullseye) formation on PET, glass, and metal containers.
Engineered under strict ISO 9001:2015 and CE standards, AmarPack’s web sealing systems feature heavy-gauge structural frames, precision PID thermal regulators, and low-friction film delivery mechanisms designed for high operational reliability and low total cost of ownership (TCO) across beverage, chemical, and pharmaceutical packaging facilities.
