A complete guide to shrink wrapping machines in India — machine types, how the technology works, film selection, price benchmarks, and a straight-talking framework for picking the right configuration for your production line.
A shrink wrapping machine applies heat-shrinkable plastic film around a product or group of products and then passes the wrapped item through a heat tunnel where the film contracts tightly against the surface. The result is a tamper-evident, dust-resistant, and visually clean package that protects contents during transit and enhances shelf appeal.
Shrink wrapping is used across food and beverage, pharmaceuticals, FMCG, printing and publishing, and industrial goods — any product that benefits from a tight, transparent outer layer. The machine does two distinct jobs: sealing the film around the product and applying controlled heat to shrink it.

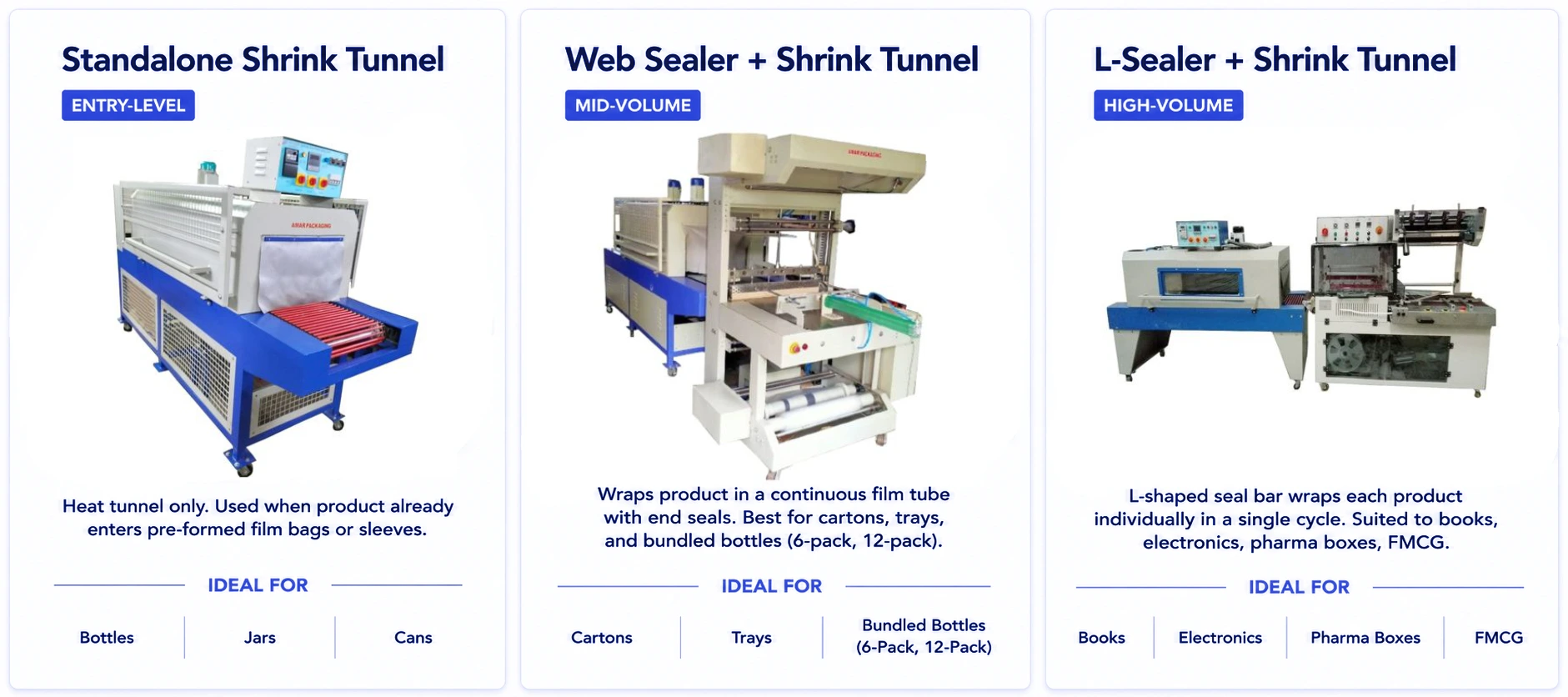

When people in India search for a “shrink wrapping machine,” they are typically looking for one of three configurations: a standalone heat tunnel (for products already bagged or loosely film-wrapped), a web sealer paired with a tunnel (for cartons, trays, and FMCG multipacks), or an L-sealer paired with a tunnel (for individual product wrapping on mid-to-high-volume lines). Each is covered in detail below.
The simplest configuration — a conveyor-fed heat chamber. Product enters already enclosed in a film bag or sleeve. The tunnel heats surrounding air to 140–180 °C, causing the film to contract uniformly. Output rates range from 10 to 60 packs per minute depending on tunnel length and belt speed. This is the entry point for operations adding shrink finishing to an existing line.
A web sealer unrolls film from a centre-fold roll, wraps the product in a tube, and makes a trailing seal at each end. The sealed pack then enters the shrink tunnel. Web sealers are the preferred solution for beverage bundling (water bottles, soft drinks, beer cans) and for overwrapping corrugated trays. Semi-automatic models handle 15–25 packs per minute; fully automatic servo-driven models reach 40–70 packs per minute.
An L-sealer uses two sealing bars — one horizontal, one vertical — to make three sides of the wrap in one stroke. Throughput ranges from 12 to 30 cycles per minute for semi-automatic models, up to 60+ for automatic inline L-sealers. L-sealers are the correct choice when products must be individually wrapped rather than bundled.
Understanding the process sequence helps you evaluate machine specifications correctly:
The machine and the film must be matched – the wrong film on the wrong machine produces poor seals or film tear. Three film types cover almost all applications in India:
| Film Type | Shrink Rate | Food Safe | Typical Use | Cost |
|---|---|---|---|---|
| POF (Polyolefin) | 40–60% | ✔ Yes (FSSAI-aligned) | Food, pharma, FMCG, cosmetics | Medium |
| PVC (Polyvinyl Chloride) | 40–50% | ✘ Non-food | Stationery, industrial, non-food retail | Low |
| PE (Polyethylene) | 15–25% | ✔ Yes | Bundling heavy multi-packs, beverages | Low |
POF film is the default choice for Indian food and pharma buyers. It is odourless, produces no chlorine fumes during sealing (unlike PVC), delivers a high-clarity finish, and is accepted under FSSAI food-packaging guidelines. Thickness range is typically 12–25 microns.
PVC film has a lower material cost and is widely used for non-food applications — stationery packs, software boxes, and industrial parts. It requires adequate ventilation at the sealing station.
PE film shrinks less dramatically but is tough and puncture-resistant. It is the standard film for beverage bundling — six-pack water bottles, 12-pack cans — where the goal is unitising rather than tight contouring.
Shrink wrapping machine prices in India span a wide range. The table below reflects 2025 indicative price brackets for Indian-manufactured machines (INR ex-works, excl. GST):
| Machine Type | Configuration | Speed | Price Range (₹) |
|---|---|---|---|
| Standalone Shrink Tunnel | Manual feed, basic temp control | 10–20 packs/min | ₹1.5 L – ₹3.5 L |
| Standalone Shrink Tunnel | Auto-conveyor, PID control | 20–60 packs/min | ₹3.5 L – ₹7 L |
| Semi-Auto Web Sealer + Tunnel | Manual product feed | 15–25 packs/min | ₹4 L – ₹8 L |
| Fully Auto Web Sealer + Tunnel | Servo drive, auto feed | 40–70 packs/min | ₹9 L – ₹18 L |
| Semi-Auto L-Sealer + Tunnel | Manual operator cycle | 12–20 packs/min | ₹3.5 L – ₹7 L |
| Fully Auto L-Sealer + Tunnel | Servo, inline conveyor | 30–60+ packs/min | ₹8 L – ₹15 L+ |
Price follows three drivers: speed (more packs per minute = higher investment in sealing mechanism and tunnel heating capacity), automation (servo drives, PLC controls, and auto film-splicing add cost but reduce labour and film waste), and tunnel size (larger products require more heating elements and a bigger footprint).
Imported machines carry an additional 15–25% cost premium from import duties and longer lead times on spare parts. Indian-manufactured machines eliminate import duty, allow INR-denominated purchases, and are supported by local service engineers.
The correct machine matches your product dimensions, required throughput, and budget — in that order.
Count your current output rate and set a target for 12–18 months out. Add 20% headroom to the machine’s rated speed. Below 15 packs per minute, a semi-automatic machine is almost always the right economic choice. Above 30 packs per minute, full automation justifies its cost in labour savings within 18–24 months.
The machine’s maximum seal width and tunnel aperture (W × H) must exceed your product’s largest cross-section with clearance. Provide maximum product dimensions (length × width × height) of every SKU that will run on the machine. A single overlooked oversized SKU will need a separate machine or an expensive tunnel modification.
If any product contacts food directly, specify POF film and confirm the machine’s sealing element is rated for POF. PVC film may require a different Teflon-coated element; mixing film types without adjusting parameters leads to poor seals or burnt film.
| Industry | Typical Product | Recommended Machine |
|---|---|---|
| Food & Beverage | Water bottles, soft drinks, snack packs, dairy trays | Web sealer + tunnel (bundling); L-sealer + tunnel (individual) |
| Pharmaceuticals | Blister strips, carton overwrap, multi-pack kits | L-sealer + tunnel (POF film, food-grade elements) |
| FMCG / Personal Care | Soap bars, shampoo bottles, gift sets | L-sealer + tunnel or web sealer + tunnel |
| Printing & Publishing | Books, magazines, stationery packs | L-sealer + tunnel or semi-auto L-sealer |
| Electronics | Retail boxes, accessory multipacks | L-sealer + tunnel |
| Industrial / Hardware | Tools, fastener packs, spare parts | Web sealer + tunnel (PVC film acceptable) |
A shrink wrapping machine is bought once and run for years, so delivery, installation, and service coverage matter as much as the machine specification. Amarpack manufactures in-house at Naigaon (Mumbai, Maharashtra) since 1998 that’s over 27 years + and supplies and services machines pan-India — including Mumbai, Pune, Nagpur, Ahmedabad, Surat, Delhi NCR, Jaipur, Indore, Bhopal, Lucknow, Kanpur, Ludhiana, Chandigarh, Kolkata, Hyderabad, Bengaluru, Chennai, and Coimbatore — across Maharashtra, Gujarat, Delhi, Rajasthan, Madhya Pradesh, Uttar Pradesh, Punjab, West Bengal, Telangana, Karnataka, and Tamil Nadu, with exports to multiple countries.
For buyers in beverage hubs (Maharashtra, Gujarat, Tamil Nadu), pharma clusters (Himachal, Gujarat, Telangana), and FMCG belts (NCR, Maharashtra), local installation and on-call engineer support shorten downtime — the deciding factor for any production line. Wherever you are in India, confirm installation, operator training, and warranty terms in writing before purchase.
