If you’re trying to standardize packaging quality (tight shrink, clean edges, fewer rejects) while keeping production moving, a shrink tunnel machine is usually the point where a packaging line stops being “manual jugaad” and starts behaving like an actual system.
And if you’re searching for a shrink wrapping machine, here’s the truth: most buyers use that term for the complete shrink packing setup (sealing + tunnel). In this guide, we’ll break down the working, the specs that actually matter, and how to buy the right machine in 2026 without overpaying or under-sizing.
Table of contents
A heat shrink tunnel machine is a heated chamber (tunnel) that uses controlled hot air to shrink packaging film tightly around a product or bundle. Products travel through the tunnel on a conveyor, the film shrinks uniformly, and you get a sealed, tamper-evident, transport-friendly pack.
In industrial setups, the tunnel is designed for:
Here’s the simplest, most practical definition:
That’s why you’ll see product pages titled “shrink wrapping machine” while the core industrial component is the shrink tunnel machine itself (because the tunnel determines finish quality, speed, and power consumption).

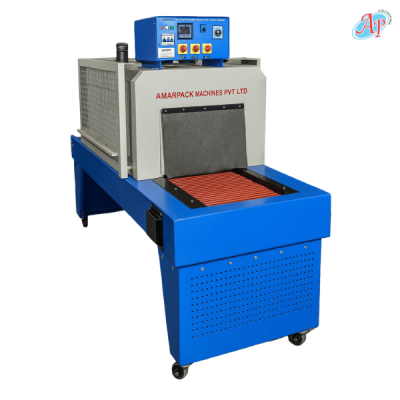

Compare Standard vs Heavy Duty Shrink Tunnel Machine models before buying.
A working shrink line is basically a 5-step ritual:
Step 1: Product collating (grouping)
Products are arranged as single packs, multipacks, trays, cartons, or bundles before wrapping.
Step 2: Film wrapping
Film (commonly LDPE/LLDPE/POF) is wrapped around the product.
Step 3: Sealing (optional but common)
Depending on your setup, sealing can be done by L-sealer / web sealer / manual sealing methods. Then the pack is sent forward into the tunnel.
Step 4: Heat shrinking inside the tunnel
Inside the shrink tunnel machine, recirculating hot air shrinks film evenly around the pack. A recirculating airflow system is specifically valued for uniform shrinking and energy efficiency.
Step 5: Cooling + setting the finish
A cooling section improves clarity and “sets” the shrink so the pack holds shape and doesn’t loosen after exiting.
Below are real-world spec parameters you should compare before you buy any shrink tunnel machine or shrink wrapping machine.
A) Tunnel size (your product decides this, not your ego)
Tunnel dimensions decide:
Example reference sizes for a standard industrial tunnel include 12″×12″, 14″×14″, 16″×14″.
Rule of thumb: keep 25–50 mm clearance around the product on all sides for clean airflow (more clearance for irregular shapes).
B) Conveyor type (this controls stability + finish)
Conveyor choice affects:
A common industrial configuration is live roller rod conveyors for smooth product flow and reduced damage.
Many systems also offer conveyor variants like mesh belt / Teflon belt / slat conveyors depending on product type.
C) Production speed (don’t buy based on “max speed” marketing)
Look for an adjustable range. A typical industrial reference spec is 6–20 packs per minute (adjustable).
Real output depends on:
D) Temperature range + control accuracy (this is where quality comes from)
A useful tunnel supports up to 0–300°C (auto-controlled) to handle common shrink films and thicknesses.
For consistent finish at higher throughput, precision control matters—some industrial setups highlight ±2°C accuracy and zone-based heating for uniform shrink across different product sizes.
E) Heating system & energy efficiency
Modern tunnels increasingly use hot-air recirculation for more even heat distribution and better efficiency. Example: fully recirculating air system with stated efficiency improvements.
Some designs also claim significant reductions in power consumption via improved recirculation and reduced heat loss.
F) Heater configuration
Heater layout affects warm-up time and shrink uniformity. Example configuration: 12× SS U-type heaters with fins.
G) Power requirement (site readiness check)
Industrial tunnels commonly run on 3 Phase, 440V, with a reference example of 9 kW.
H) Motor specs
Motor sizing ties to conveyor load and continuous use. A reference spec includes 1/2 HP or 1/4 HP AC motor.
I) Customization options (where serious buyers win)
In 2026, buyers should expect customization like:
extension conveyors.
If you want a quick benchmark checklist for a mid-production shrink tunnel machine, here’s a reference spec set:
That combination is typically positioned as a stable “workhorse” zone between portable entry-level machines and heavy-duty automatic lines.
Film choice decides:
Many industrial tunnels are positioned for LDPE/LLDPE compatibility (especially for heavier packs and multipacks).
Other common shrink films used in the market include PVC and POF (often depending on product category and finish expectations).
Practical selection logic:
Read the full blog on choosing the right shrink film for your product type.
Here’s the buyer checklist that prevents most “wrong machine” purchases:
1) Confirm your pack size range (min + max)
2) Define production reality (not your dream capacity)
3) Demand stable temperature control
Look for:
4) Choose the right conveyor for your product
5) Check safety + compliance expectations
In 2026, your shortlist should include:
6) Ask about after-sales support (this is where ROI lives)
A shrink wrapping machine is not a “buy once and forget” asset. Ask about:
(Some manufacturers explicitly position their after-sales network and service technicians as part of the offer.)
A properly configured shrink tunnel machine is used across:
The most important factor in any business investment is Return on Investment (ROI). Before purchasing, understand the ROI of a Shrink Tunnel Machine and how it improves packaging efficiency and reduces operational costs.
Manufacturers like AmarPack Machines Private Limited represent this new generation of Indian packaging solution providers.
With decades of experience, AmarPack designs and manufactures:
Built with Indian manufacturing intelligence and global application in mind, such companies demonstrate how Made-in-India packaging lines are now competing— and winning—on the world stage.
