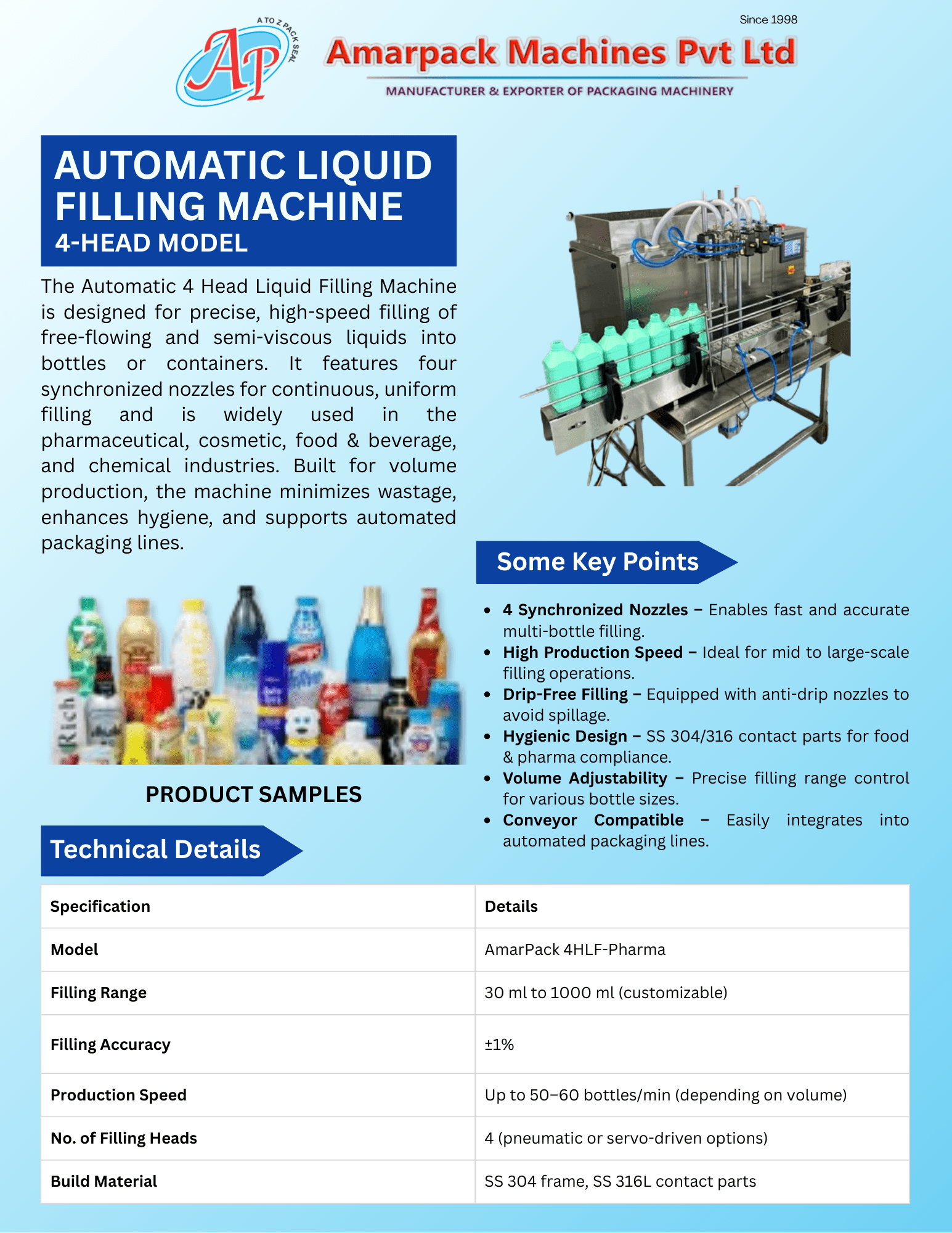

The 4 Head Liquid Filling Machine is a robust, high-speed semi-automatic/automatic solution for precise dosing and filling of pharmaceutical liquids such as syrups, oral suspensions, antiseptic solutions, and more. Designed for cleanroom use, it integrates GMP-compliant stainless steel construction, drip-free nozzles, and advanced volumetric or servo-based dosing systems.
With 4 synchronized filling heads, the machine boosts output without compromising on accuracy. It is perfect for mid-to-high-volume pharma production lines looking to improve consistency and speed while adhering to stringent hygiene standards.
Manufactured by AmarPack Machines Pvt Ltd, a leading 4 Head Liquid Filling Machine Manufacturer in India, this model is highly demanded by pharma industries in Baddi, Ahmedabad, Hyderabad, Mumbai, and other key pharma hubs.
The 4 synchronized filling nozzles work in parallel to fill up to 50–60 bottles per minute, depending on the product’s viscosity and bottle size. The machine integrates advanced volume calibration mechanisms that can be fine-tuned to accommodate various fill volumes ranging from 30 ml to 1000 ml. Each nozzle is drip-free and precisely aligned with the bottle neck to eliminate spillage and ensure product integrity.
| Specification | Details |
|---|---|
| Model | AmarPack 4HLF-Pharma |
| Filling Range | 30 ml to 1000 ml (customizable) |
| Filling Accuracy | ±1% |
| Production Speed | Up to 50–60 bottles/min (depending on volume) |
| No. of Filling Heads | 4 (pneumatic or servo-driven options) |
| Build Material | SS 304 frame, SS 316L contact parts |
High-Speed Filling:
Capable of filling up to 60 bottles per minute, optimizing throughput for mid to large-scale facilities.
Precise Volume Control:
Filling range of 30 ml to 1000 ml with ±1% accuracy, ensuring no underfill or overfill issues.
Flexible Operation Modes:
Available in semi-automatic or fully automatic variants with support for footswitch or PLC-based operation.
Servo or Pneumatic Drive:
Choose between cost-effective pneumatic drives or advanced servo motors for more accuracy and flexibility.
Drip-Free Nozzles:
Eliminates product waste, keeps filling area clean, and enhances operator safety.
SS316L Contact Parts:
Contact components made with pharmaceutical-grade stainless steel to meet hygiene compliance.
It can fill up to 50–60 bottles per minute, depending on the fill volume and product viscosity.
Yes. It is built with SS 316L contact parts and SS 304 body, making it fully GMP and pharma compliant.
Absolutely. The machine works efficiently with PET, HDPE, and glass bottles of various neck sizes.
Yes. It handles low to medium-viscosity liquids such as suspensions, syrups, and herbal tonics.
Yes, AmarPack Machines Pvt Ltd provides nationwide service, including Mumbai, Baddi, Ahmedabad, and Hyderabad.
Yes, our 4 Head Liquid Filling Machine can be seamlessly integrated with automatic capping, labeling, and conveyor systems to form a complete liquid packaging line.
The machine is designed with quick-release parts and CIP (clean-in-place) compatibility, making cleaning efficient and compliant with pharma hygiene norms.
Yes, the machine features tool-less changeover for filling heads and bottle guides, allowing you to switch between bottle sizes quickly.
Founded in 1998 in Mumbai, India, AmarPack Machines Pvt. Ltd. is one of India’s leading manufacturers and exporters of premium packaging machines. Read More
